Molded cap rail—also known as handrail molding or railing moulding—provides a durable, visually finished profile used in ornamental railing systems, guardrails, stairways, balconies, and architectural metalwork. The contoured design improves grip comfort, enhances appearance, and supports smooth transitions between pickets, posts, and structural elements. Molded cap rail is commonly paired with square bar, flat bar, and decorative railing components to complete steel and ironwork assemblies in commercial, residential, industrial, municipal, and architectural applications.
Central Steel Supply Company provides specification-compliant molded cap rail profiles to support fabrication efficiency, installation coordination, and long-term project performance. The following sections outline available profi/les, material dimensions, processing options, and support services.
Dimensions, Grades, and Value-Added Support
Central Steel Supply Company stocks 3 types of Molded Cap Rail:

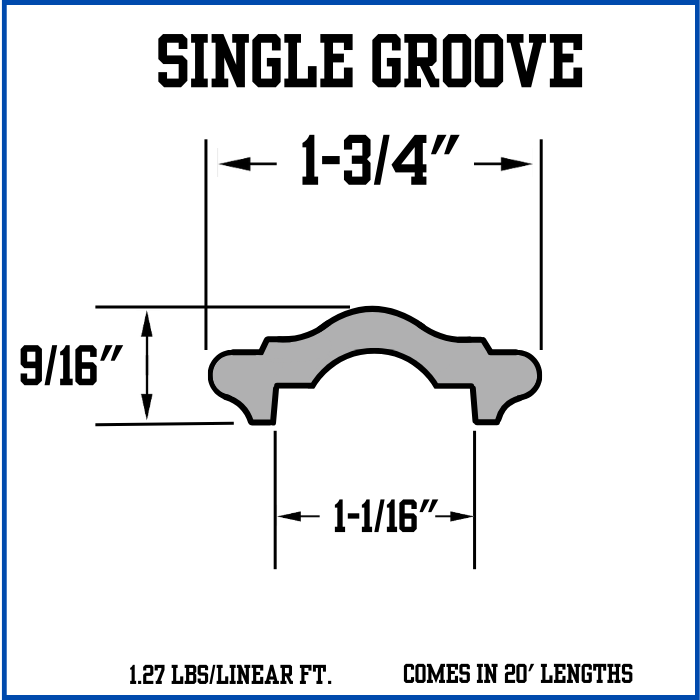

- Single Groove Cap Rail
- Overall width: 1-3/4″
- Height: 9/16″
- Internal groove width: 1-1/16″
- Weight: 1.27 lbs/ft
- Standard length: 20′

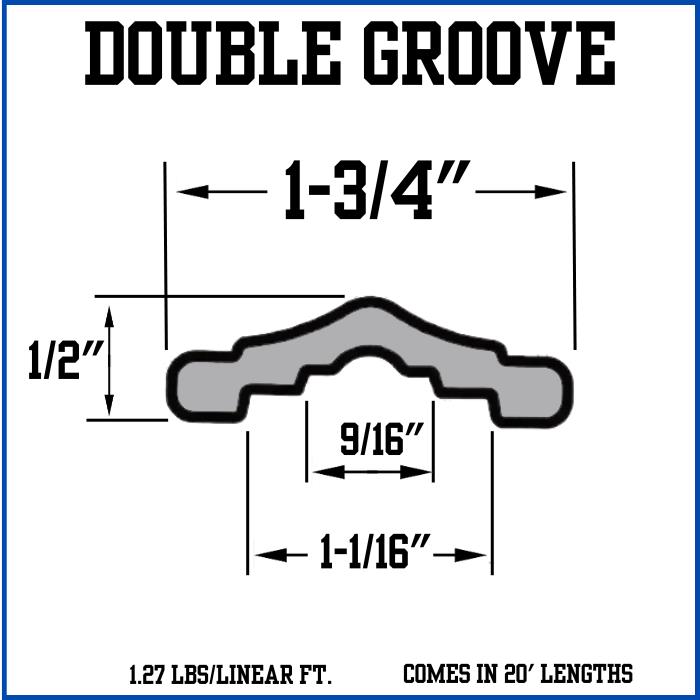

- Double Groove Cap Rail
- Overall width: 1-3/4″
- Height: 1/2″
- Dual Internal groove widths: 9/16” & 1-1/16”
- Weight: 1.27 lbs/ft
- Standard length: 20′

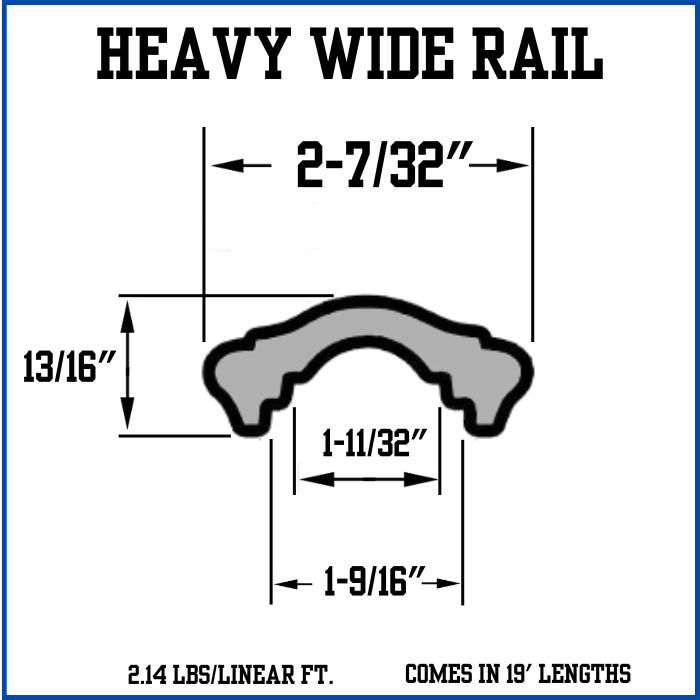

- Heavy Wide-Rail Molding
- Overall width: 2-7/32″
- Height: 13/16″
- Dual Internal groove widths: 1-9/16” & 1-11/32″
- Weight: 2.14 lbs/ft
- Standard length: 19′
Standard Grade, Lengths & Value-Added Support
Molded cap rail is commonly supplied in Grade A36 steel and is offered in 19’–20′ standard lengths, depending on the specific profile (Single Groove, Double Groove, Heavy Wide-Rail). Material can be provided to specified lengths through coordinated saw-cutting support—including miter-cut capability—to enhance workflow efficiency for railing fabrication and installation.
Supplying molded cap rail to required dimensions helps reduce shop handling, minimize onsite adjustments, streamline installation sequencing, and strengthen long-term business relationships by supporting each customer’s overall project success.
Compatible Components
Molded cap rail pairs well with both square bar and flat bar components used in railing construction. Common complementary items include:
- Square bar pickets
- Flat bar stringers or uprights
- Steel posts and mounting plates
- Decorative forged elements
- Fasteners and connection materials
These components can be sourced through Central Steel Supply Company or coordinated through trusted partner resources when needed to streamline procurement.
Processing Services for Molded Steel Cap Rail
Central Steel Supply Company facilitates processing services designed to support customer efficiency, optimize processing operations, and reinforce strong business relationships. Advanced equipment and trusted partner resources allow molded cap rail material to be supplied to precise dimensional requirements, contributing to smoother fabrication and installation workflows.
- Saw Cutting: Precision saw cutting—including miter-cut capabilities where applicable—allows molded cap rail material to be supplied in required lengths, supporting dimensional accuracy and reducing preparation time in both shop and job-site environments.
Detailing Support & Material Takeoff Assistance
Central Steel Supply Company can assist with quantity takeoffs, basic detailing support, and material identification for railing projects involving molded cap rail. A full CAD department is available to interpret, develop, or refine drawings when required, contributing to clear material lists, consistent dimensions, and improved workflow coordination. These support services reduce field-level uncertainty and reinforce long-term business relationships by supporting each customer’s project efficiency and success.
Industries and Common Applications
Molded cap rail supports reliable performance across commercial, residential, architectural, and municipal railing systems. The profile is used for handrails, guardrails, balcony railings, stair systems, fence rails, and ornamental metalwork requiring a smooth, comfortable gripping surface and consistent aesthetic finish. Whether in single-groove, double-groove, or wide-rail designs, molded cap rail provides durable support for fabricated railing assemblies and complements square and flat bar components commonly used in railing construction.
- Commercial Construction and Engineering: Architectural railing systems, mezzanine rails, balcony edges, stair and walkway guards.
- Residential Construction: Porch railings, deck rails, interior stair rails, balcony systems, ornamental fencing.
- Municipal & Infrastructure: Public-access guardrails, transit facility barriers, pedestrian overpasses, stair systems.
- Industrial: Access platforms, safety rails, equipment mezzanines, walkway protection systems.
- Original Equipment Manufacturing (OEM): Used in fabricated assemblies requiring a finished hand-grip profile, clean edging, or durable protective molding integrated into equipment frames and access points.
- Masonry & Site Work: Applied as a finishing element atop masonry walls, guardrails, and site-built railing systems, providing a smooth, reinforced handhold and a clean architectural transition between steel and masonry components.
- Landscape Construction: Selected for exterior rail systems, walkway edging, and architectural accents where a durable molded profile supports safety, aesthetics, and long-term environmental exposure.
Contact Us for a Quote Today
Partnering with a supplier that delivers reliable inventory, precise material accuracy, dependable service, and strong technical expertise helps create lasting business relationships and elevates overall customer success. Central Steel Supply Company provides steel products and value-added services that enhance efficiency, reduce delays, and keep projects moving with consistent productivity. Quotes for material availability and processing options are available upon request.
